Eletro-Pneumatic Positioner and valve positioner
price EP1000 series koso valve positioner
SPECIFICATION
| Series | EP1000 |
| Applicable Actuators | Single and double acting actuators |
| Input Signal | 4 to 20mA DC (adjustable to 1/4 split range) |
| Power supply | 2-Wire type |
| Input impedance | 500Ω at 20mA (Input voltage less than 10V) |
| Characteristic | Linear (Desired characteristic settable) |
| Pilot valve | Non-bleeding type
Single acting and double acting types are available |
| Air supply | 140 to 700kPa |
| Air consumption | Output air pressure 50%
5Nl/min at 140kPa air supply
15Nl/min at 400kPa air supply |
| Max. capacity | Capacity when output is atmospheric venting
175Nl/min at 140kPa air supply
400Nl/min at 400kPa air supply |
| Performance | For single acting actuator
Linearity : +/-1.0% of FS.
Hysteresis : 0.5% of FS.
Response level : 0.1% of FS.
Repeatability : 0.2% of FS. | For double acting actuator
Linearity : +/-1.5% of FS.
Hysteresis : 0.8% of FS.
Response level : 0.2% of FS.
Repeatability : 0.3% of FS. |
| The above represents the performance of the positioner on an actuator without a valve. For the performance of the complete unit with a valve and an actuator, see KOSO STANDARD SPECIFICATION. |
| Calibration | 1 button calibration
Calibration by positioner alone.
Own program
with Note PC or Disktop PC |
| Self diagnosis items | Air supply check/Eath unit's function check/Over load check
Fail position for breakdown selectable |
| Air connection | Rc 1/4 |
| wiring connection | G 1/2 |
| Ambient temperature | Standard type : -20 to 80°, Explosion type : -20 to 60° |
| Ambient humidity range | 10 to 90% RH |
| Enclosure | Weather proof type (IP65), Explosion proof type (ExdCT6) |
| Standard anicillary | Auto-Manual change |
| Housing material | Aluminum alloy |
| Coating | Epoxy resin group paint |
| Coating colors | Body : Dark green, Cover : Light gray |
| Apporox. Weight | 2.6kg |
| Optional specifications | Available upon request |
| Position transmitter | 4 to 20mA 2-Wire type
Power source required in addition to input signal. |
| Limit switches | Open/Shut
Open collector type |
| Self diagnosis indication | diagnosis result on LED
Separate power supply required |
| wiring connection | 1/2 NPT |
| Air connection | 1/4 NPT |
Product Description

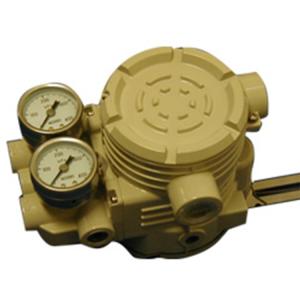

EP1000:Eletro-Pneumatic Positioner
This is an intelligent electropneumatic positioner that conforms to field equipment communication standard HART, which is a world standard.
It permits easy and positive digital adjustment of positioner response characteristics and zero and span from a host equipment mounting DDL or from an HHC (Hand Held Communicator). Furthermore, with 3-key calibration executed by a pushbutton built in the positioner, it is possible to set principal items by unit positioner, without need for HHC or the like.
It can be mounted to an actuator of any of single action type, double action type, rotary type and linear type, and it operates with a 4-20mA instrumentation signal and compressed air. Therefore, it is a positioner of broad universality, and it is capable of transmitting self-diagnosis information and others besides valve opening and open/close limit signals to a host equipment that conforms to HART.
KOSO is now developing FF dealing equipment, which digitalizes up to control signals and conforms to Fieldbus Foundation Standards.
